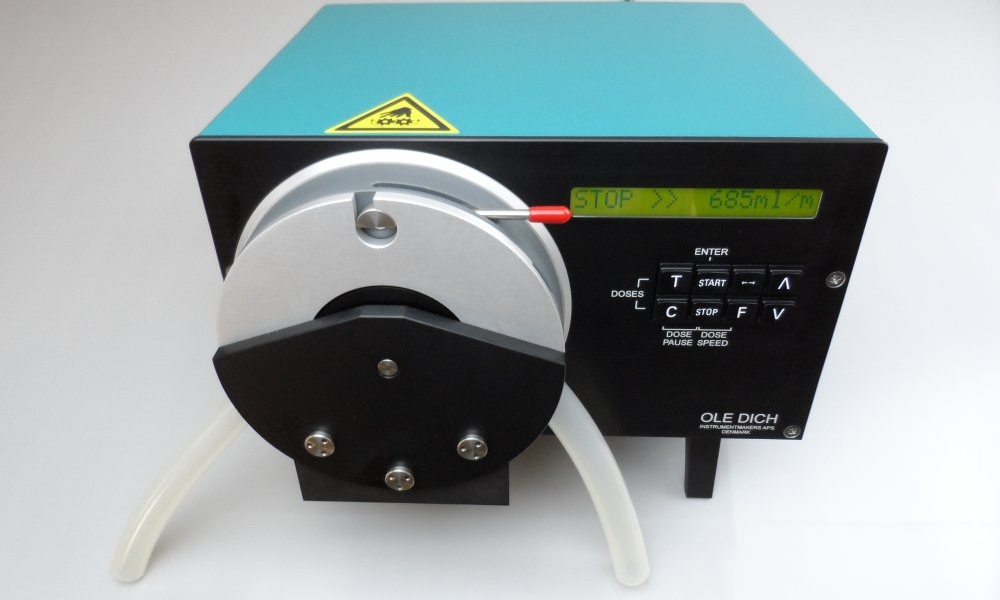

Ole Dich peristaltic multi channel pump type 111

Pumpspeed  Re-setting precision 100 %.
Operating temperature:  0 – 40°C
Main voltage:  230 V AC +-10% 50/60 Hz. 50 W max.
Dimensions:  130 x 220 x 230 mm (without channels).
Weight without channels: Approx. 4,5 kgs.
Min. and Max. number of doses: 1 - 100.000 or constant.
Min. and Max. pause:  0,1 sec. - 9999 hours.
Exstras:
Microprocessor-controlled pump 1-4 channels.
Flow rates from 2 yl/hour - 59 l/hour.
Built-in dose function.
RS 232
Prospect


COMMON DATA TYPE 111

Theese programmable pump drives offers various dispensing modes, providing highly reproducible and accurate results.

The pumpdrive 111 can be equipped with all types Ole Dich pumpchannels.

• Programming and control via keypad and LCD-display.

• Flow settings based on pre-programmed tube types.

• All set values are updated automatically.

• "ANTI DROP" function prevents dripping after a dose.

• Easy calibration.

• Simple setting of dosing number, pause interval and disered dosing speed.

• Can be delivered with RS 232 which allows possibility of controlling 9 pumps from one PC.

• All models are supplied with parallel port, which provides the possibility of start/stop via timer, foot pedal or other dosing accessories.

Data



 Max. number of
Channels
Flow
        Ml/min.

Recommended
for dosing
Ord. no. without channels  XL Max.  Min.
111AC(R)80G150  1  990  10  50-1000
111AC(R)40G75  2  990  10
111AC(R)80G75  3  495  0,22
111AC(R)40G38  3  495  0,22
111AC(R)80G38  4  495  0,22
(R) in order number indicate built in RS 232.
